Clean, shop-ready spool sheets and marked-up isometrics with precise weld numbering, comprehensive BOM schedules, cut lengths, and QC-friendly detailing. Click any drawing to inspect high-resolution details.

Cut Sheet01 / 09

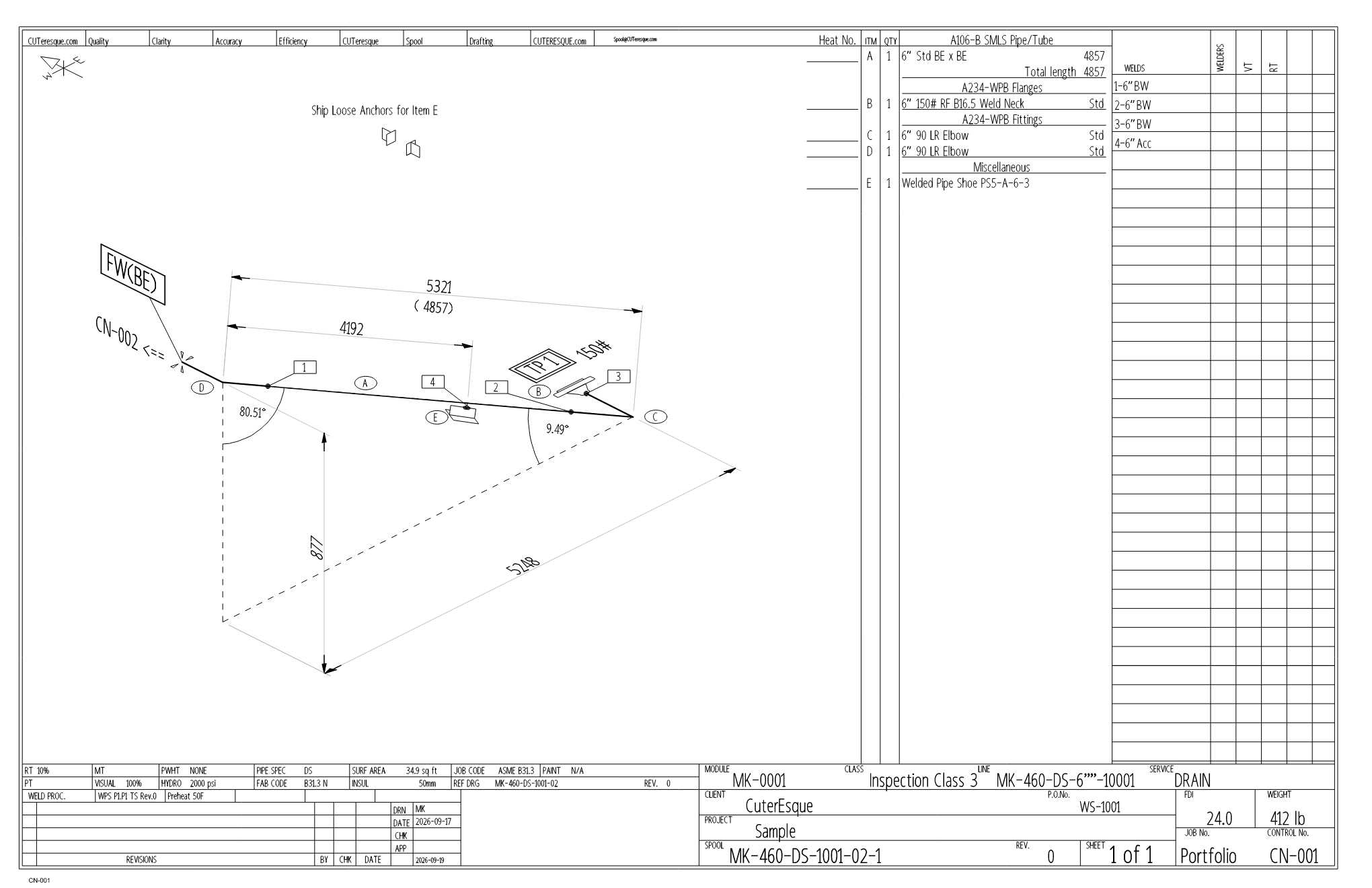

Spool MK-460-DS-1001-02-1 (CN-001)

Open in New Tab

Cut Sheet02 / 09

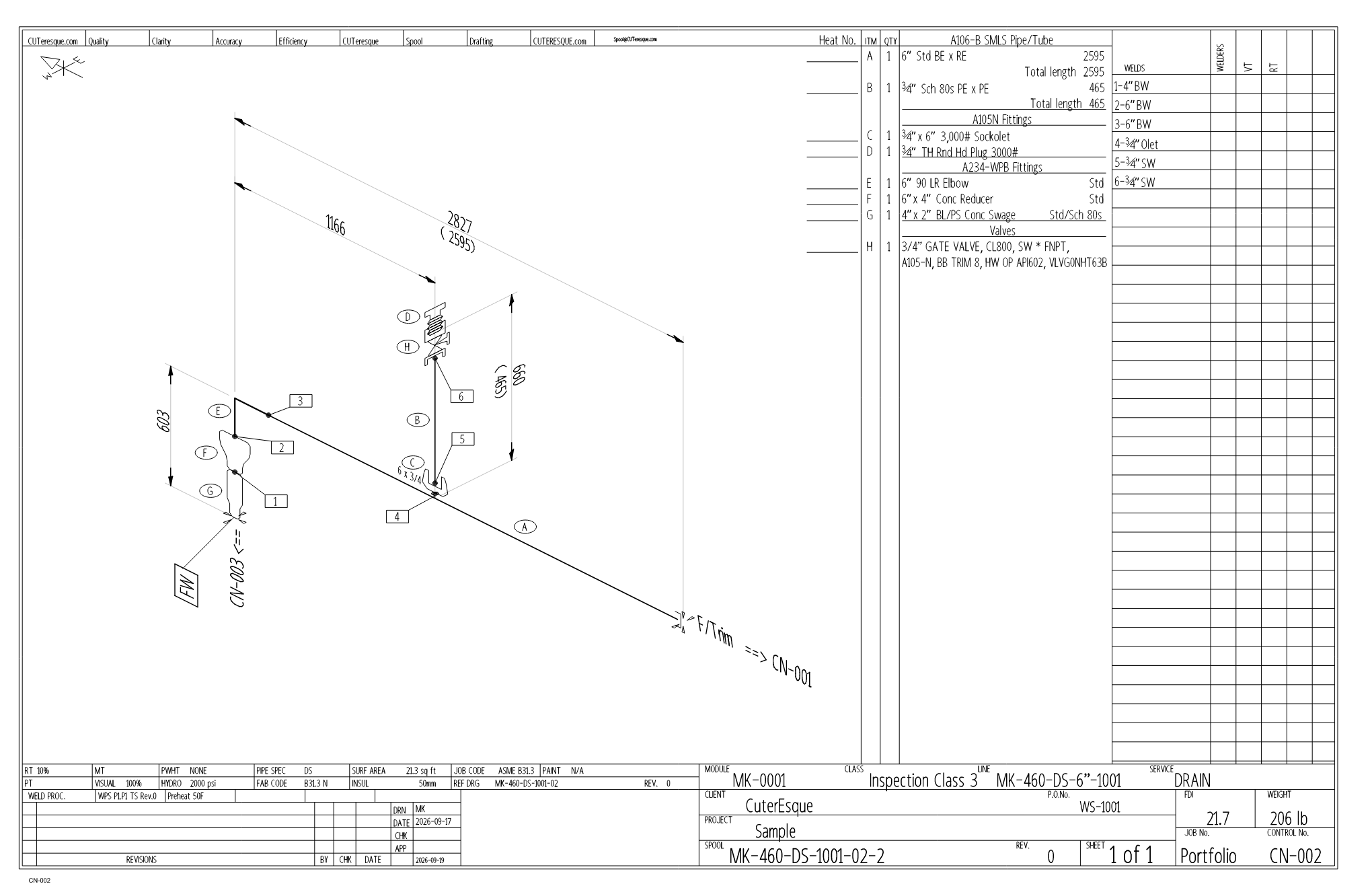

Spool MK-460-DS-1001-02-2 (CN-002)

Open in New Tab

MARKED UP ISOMETRIC03 / 09

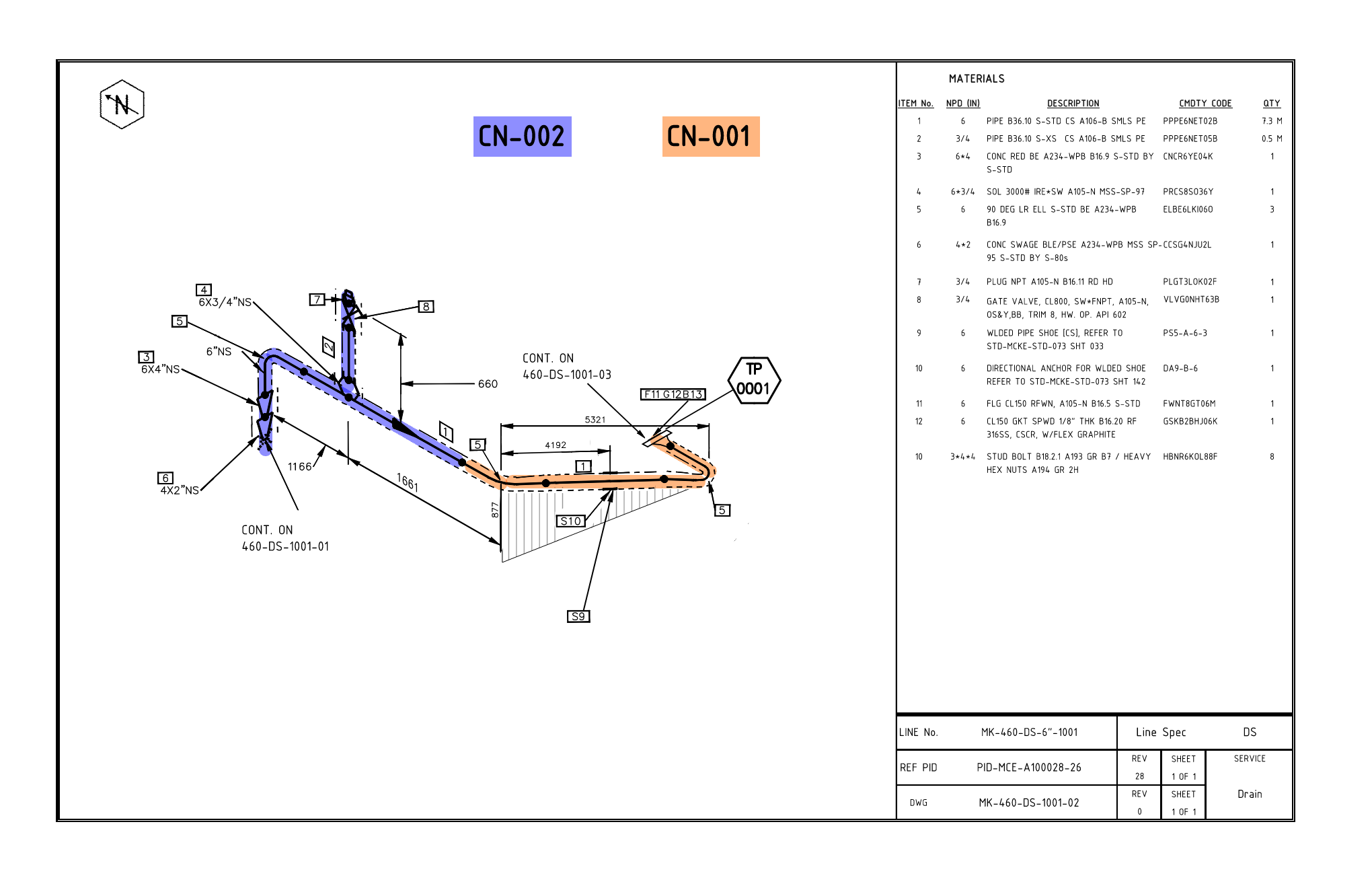

REFERENCE ISOMETRIC MARKUPS (CN-001/CN-002)

Open in New Tab

Cut Sheet04 / 09

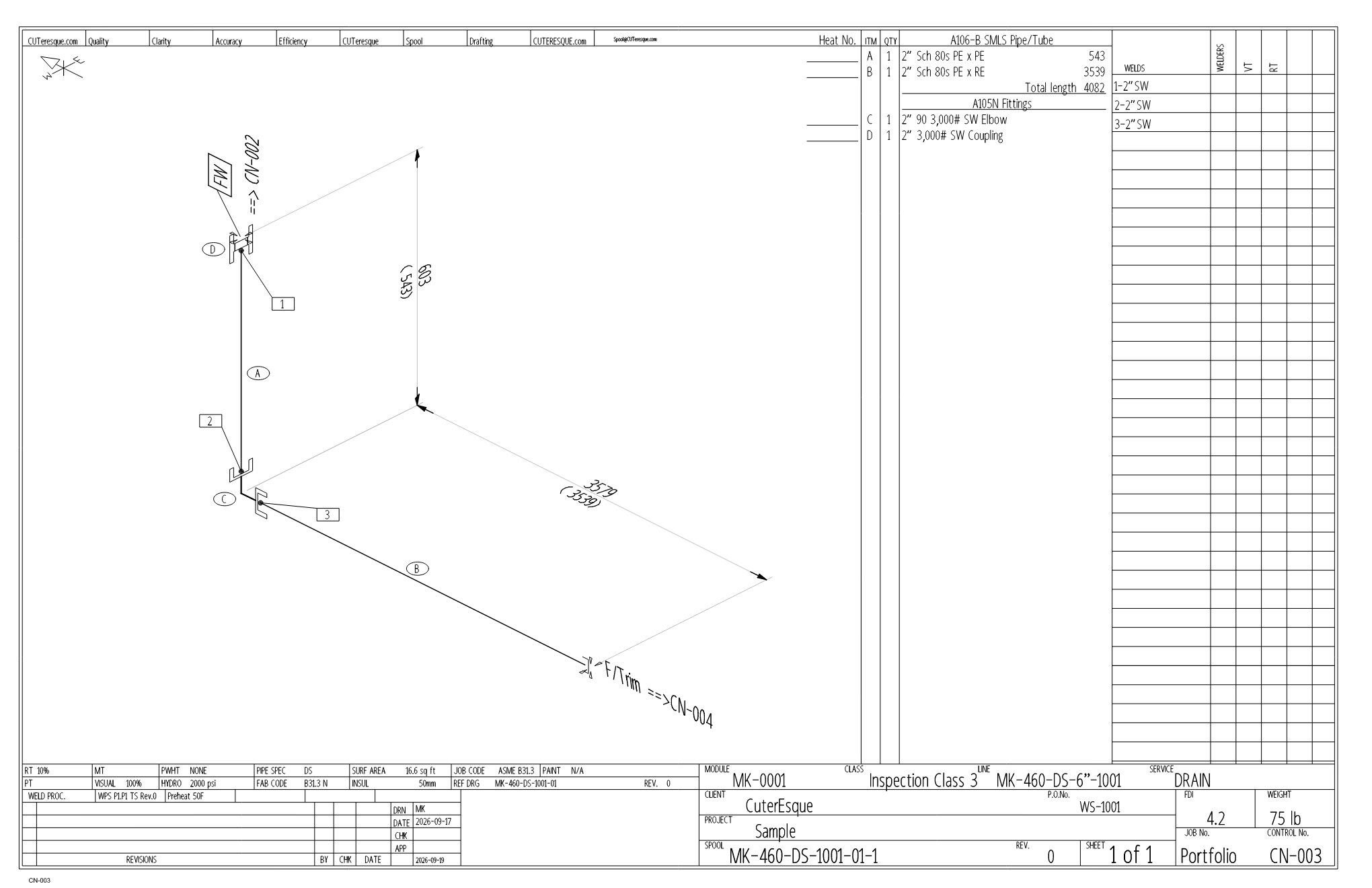

Spool MK-460-DS-1001-01-1 (CN-003)

Open in New Tab

Cut Sheet05 / 09

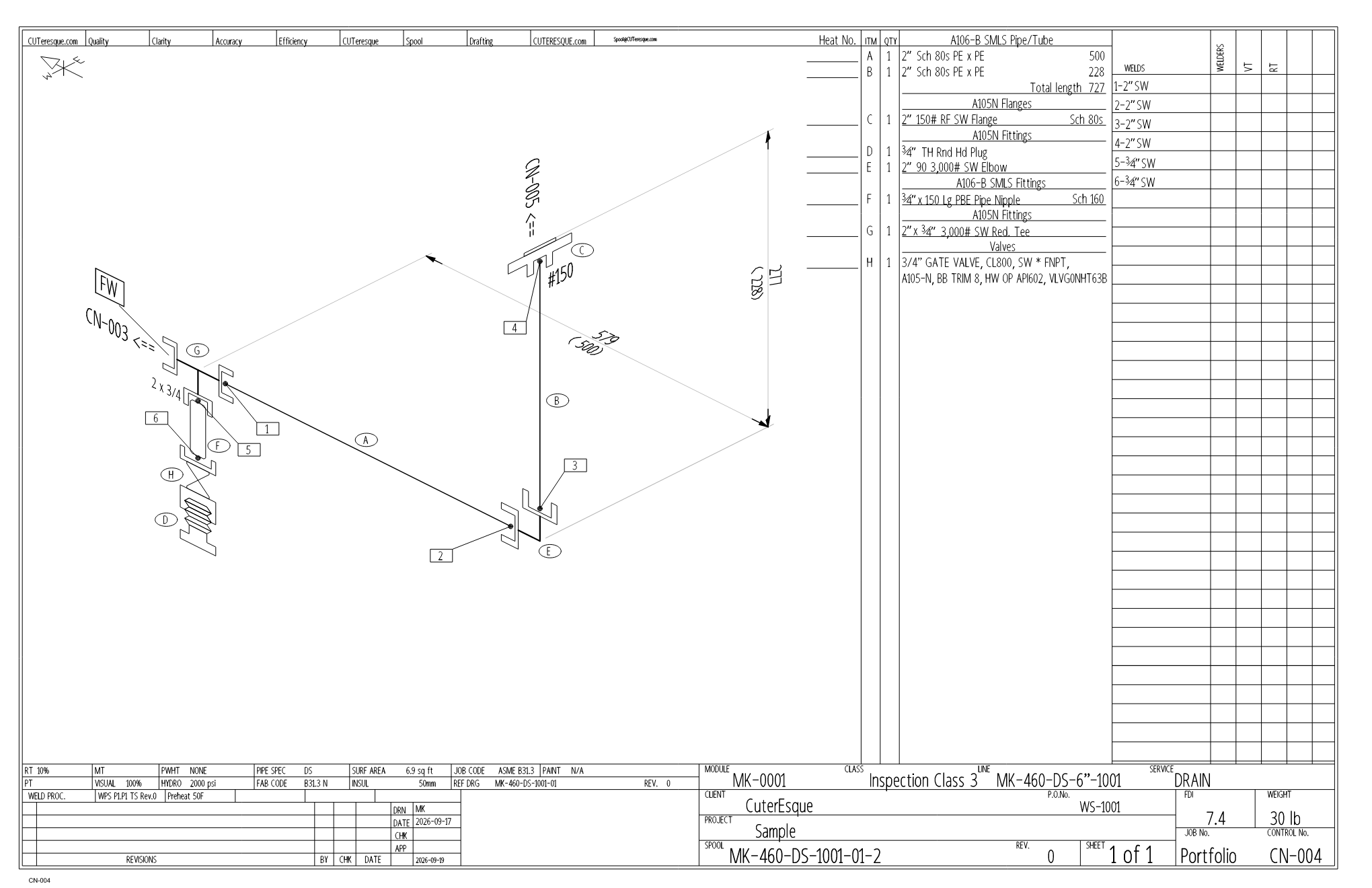

Spool MK-460-DS-1001-01-2 (CN-004)

Open in New Tab

MARKED UP ISOMETRIC06 / 09

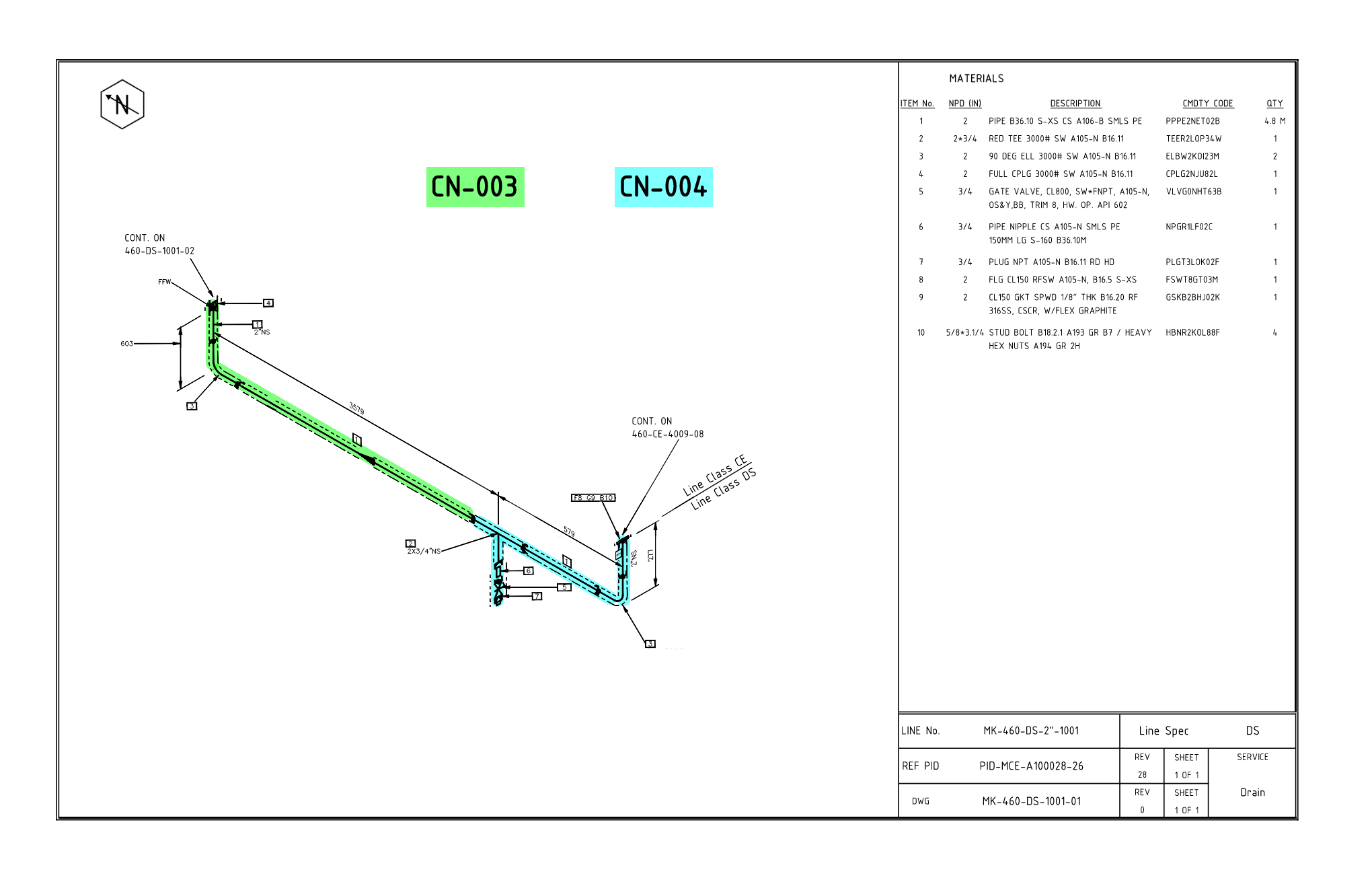

REFERENCE ISOMETRIC MARKUPS (CN-003/CN-004)

Open in New Tab

Cut Sheet07 / 09

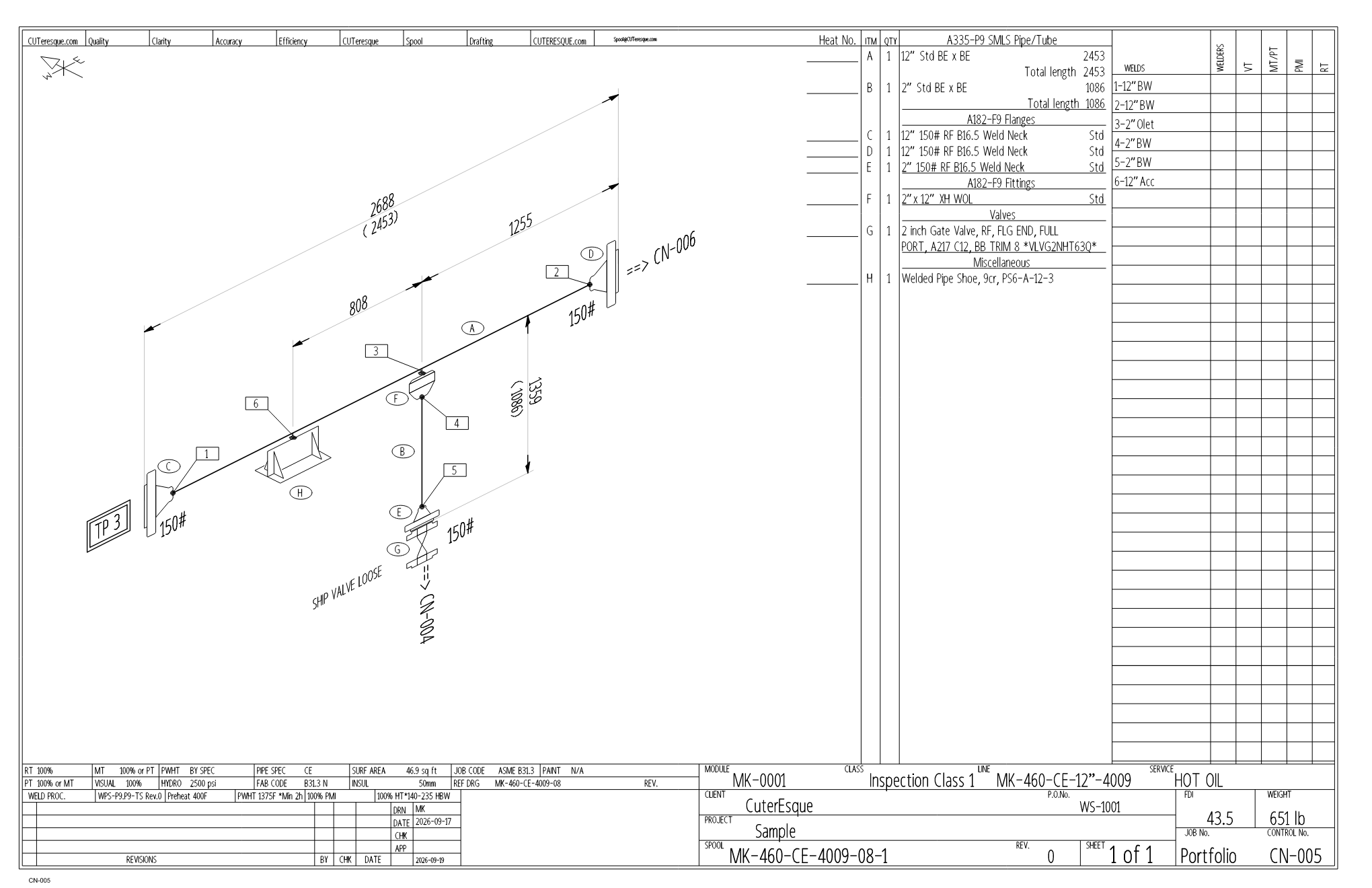

Spool MK-460-CE-4009-08-1 (CN-005)

Open in New Tab

Cut Sheet08 / 09

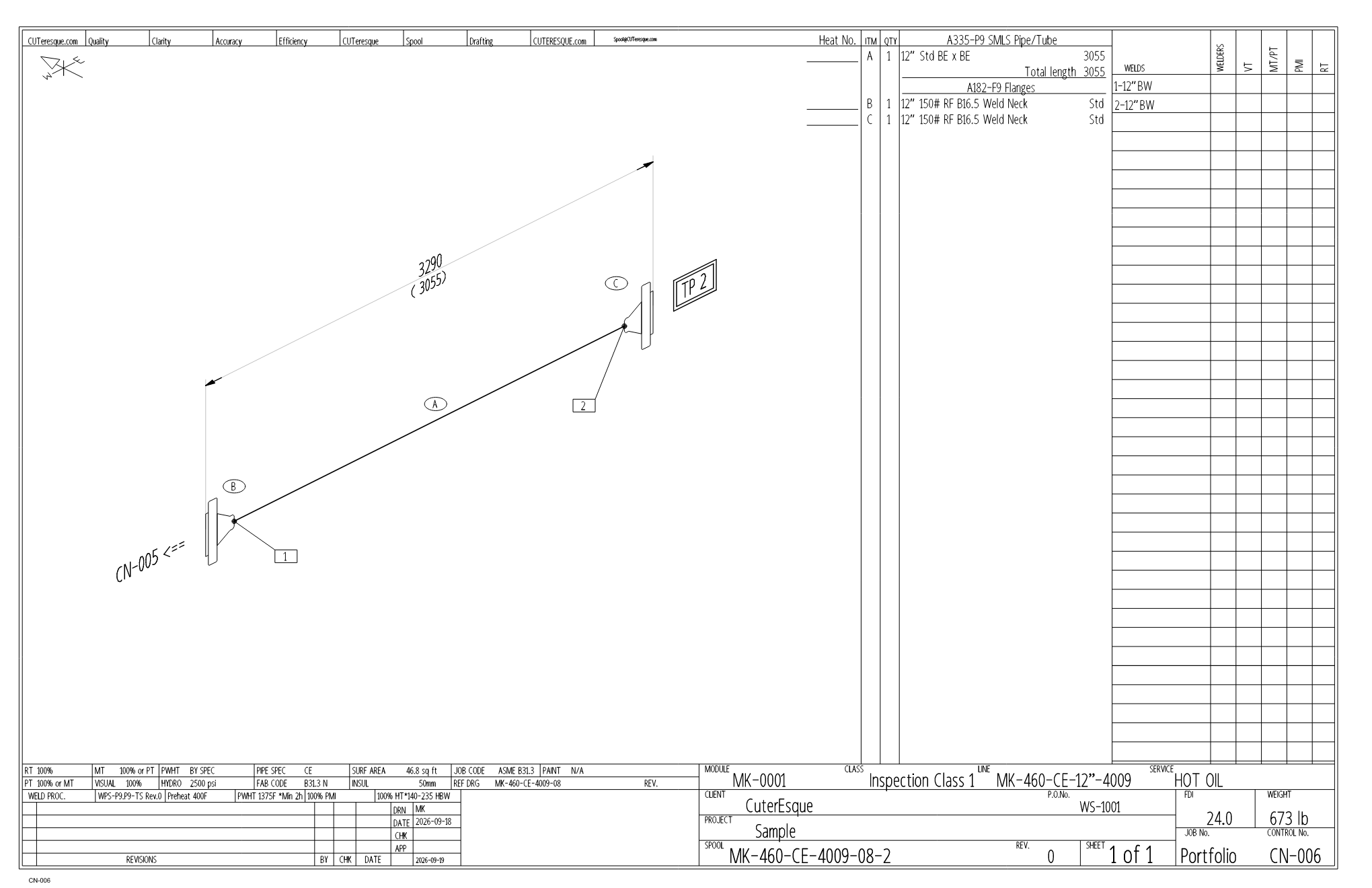

Spool MK-460-CE-4009-08-2 (CN-006)

Open in New Tab

MARKED UP ISOMETRIC09 / 09

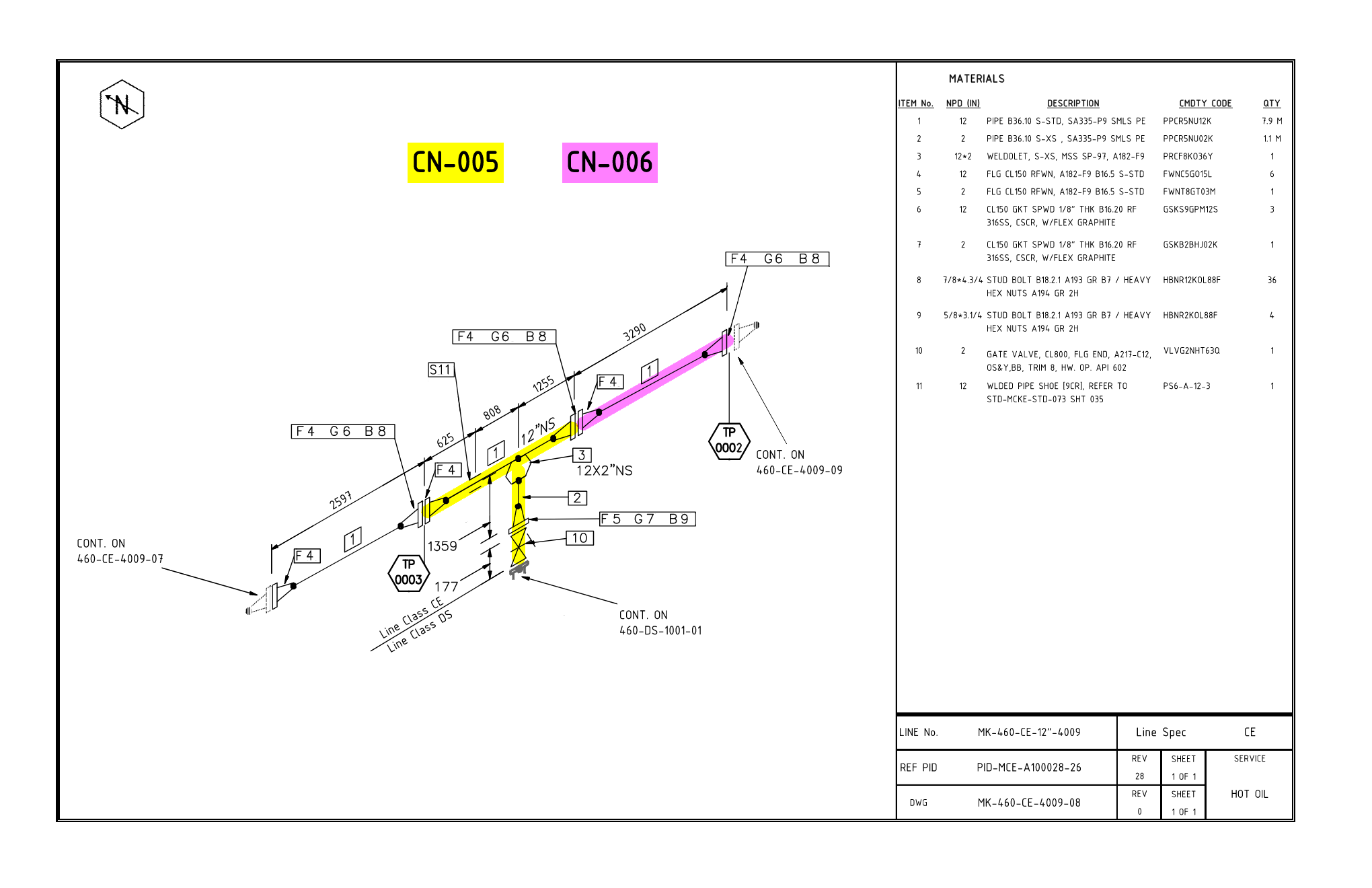

REFERENCE ISOMETRIC MARKUPS (CN-005/CN-006)

Open in New Tab
